Onix Tocata XM2

$629.00

Now In (01.17.26)

Features:

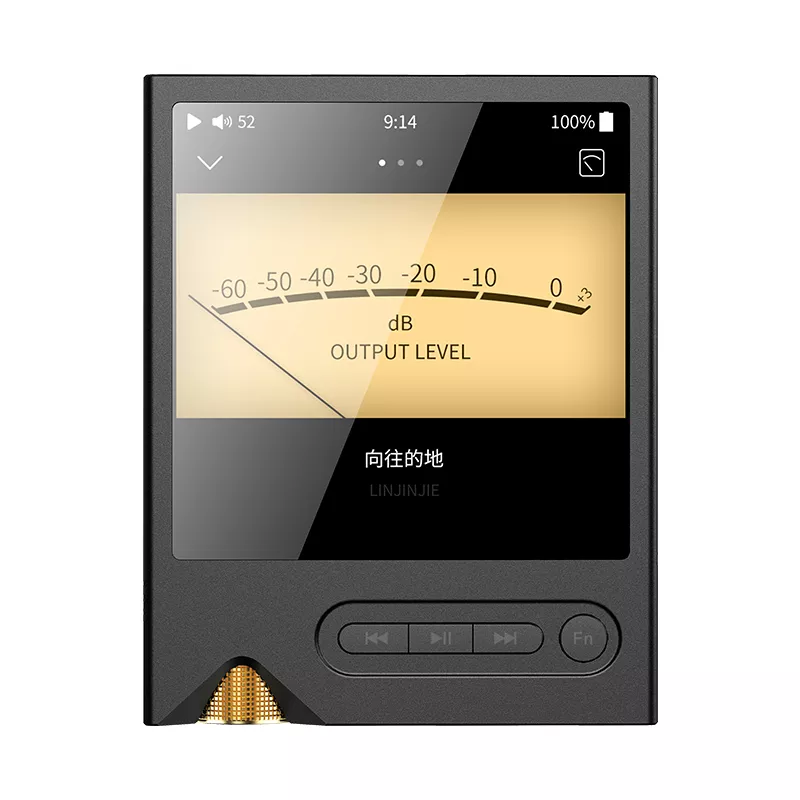

  • Display: 3-inch 720p OLED Touchscreen

  • System: Ingenic X2000 Platform, Pure Music OS

  • DAC Chip: Cirrus Logic CS4308P (8-channel)

  • Audio Support: PCM 768kHz/32bit, DSD512, DXD, APE, FLAC, WAV, etc.

  • Outputs: 3.5mm Single-Ended, 4.4mm Balanced

  • Output Power (4.4mm): Up to 800mW @ 32Ω (High Gain)

  • THD+N: 0.0005% @ 32Ω (A-Weight)

  • S/N Ratio: 121dB @ 32Ω (A-Weight)

  • Bluetooth: 5.2 (LDAC, aptX HD, aptX, AAC, SBC)

  • Wi-Fi: 2.4/5G, DLNA, AirPlay

  • Storage: microSD (up to 2TB)

  • Battery: 3000mAh, ~8.5 hrs life

  • USB: USB DAC & Digital Output

  • Dimensions/Weight: 82 x 65 x 18 mm / 140g

Now In (01.17.26)

Features:

  • Display: 3-inch 720p OLED Touchscreen

  • System: Ingenic X2000 Platform, Pure Music OS

  • DAC Chip: Cirrus Logic CS4308P (8-channel)

  • Audio Support: PCM 768kHz/32bit, DSD512, DXD, APE, FLAC, WAV, etc.

  • Outputs: 3.5mm Single-Ended, 4.4mm Balanced

  • Output Power (4.4mm): Up to 800mW @ 32Ω (High Gain)

  • THD+N: 0.0005% @ 32Ω (A-Weight)

  • S/N Ratio: 121dB @ 32Ω (A-Weight)

  • Bluetooth: 5.2 (LDAC, aptX HD, aptX, AAC, SBC)

  • Wi-Fi: 2.4/5G, DLNA, AirPlay

  • Storage: microSD (up to 2TB)

  • Battery: 3000mAh, ~8.5 hrs life

  • USB: USB DAC & Digital Output

  • Dimensions/Weight: 82 x 65 x 18 mm / 140g

ONIX Design in Compact Form

While Overture XM5 offered the unique ONIX design and pure music platform, Waltz XM10 was setting trends with its compact dimensions. Tocata XM2 now merges both of these design approaches into an affordable and practical Music player, bringing the unmistakable ONIX quality to a new level of compactness.

Latest DAC Technology

Tocata XM2 is the first ONIX model to implement the flagship Cirrus Logic CS4308P, a brand-new 8-channel DAC, providing a fully balanced circuit and representing a significant sound quality upgrade over the older Cirrus Logic chipsets. Supported by the in-house developed “Brighton” I/V conversion circuit and pair of SGM amplifiers, offering up to 800 mW @ 32 Ohm output power, while ensuring a low output impedance for even the most sensitive In-Ear Monitors.

Pure Music System

Highly focused and fast system, powered by the Ingenic X2000 platform and designed for the most demanding audiophiles. Avoiding the distractions of modern smartphones and simply offering the core music experience. Playing Hi-Res files from MicroSD card, streaming with Tidal or running over DLNA/Airplay, uninterrupted High-Fidelity sound is guaranteed.

Full Package from ONIX

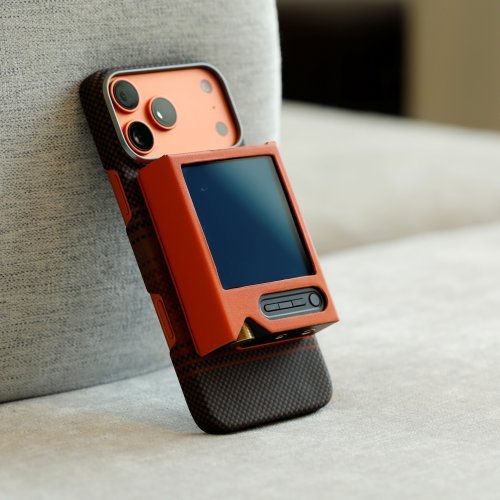

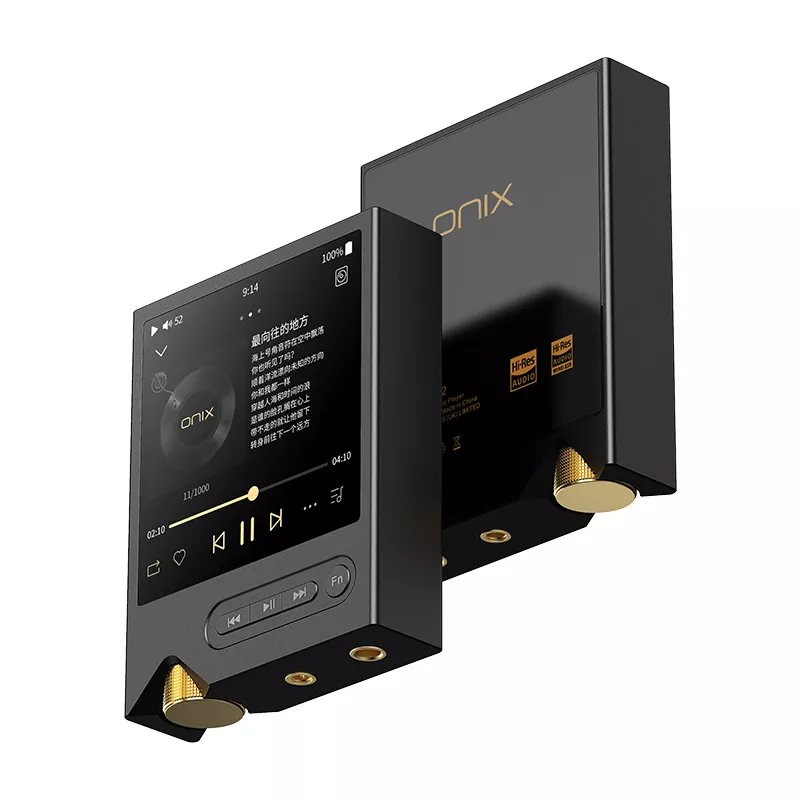

Durable and expertly crafted aluminium body hides all the extra features that can be expected from ONIX creations. Bi-Directional Bluetooth for on-the-go streaming from smartphones or for smooth connection to wireless headphones or speakers. USB digital output for feeding high-end external DACs. And USB DAC mode for use with computers and smartphones, now even more practical thanks to the new magnetic phone case!*

AUDIO Specifications:

  • Balanced Output (4.4mm):

    • High Gain: 800 mW @ 32 Ω (5.08 Vrms).

    • Low Gain: 200 mW @ 32 Ω (2.54 Vrms).

    • Output Impedance: 0.7 Ω.

  • Single-Ended Output (3.5mm):

    • High Gain: 204 mW @ 32 Ω (2.56 Vrms).

    • Low Gain: 51 mW @ 32 Ω (1.28 Vrms).

    • Output Impedance: 0.4 Ω.

  • Signal Performance: 121 dB Signal-to-Noise Ratio (SNR), 112 dB Channel Separation (Balanced), and 0.0005% THD+N @ 32 Ω

    Battery

  • Battery: 3000 mAh capacity offering up to 8.5 hours of playback (SE or Balanced).

  • Charging: 12W PD fast charging via USB-C.

    Additional Features

  • Remote Control: Supports SyncLink via the Eddict Player App on iOS and Android.

  • Magnetic Mounting: Compatible with special magnetic cases (sold separately) for easy pairing with smartphones.
