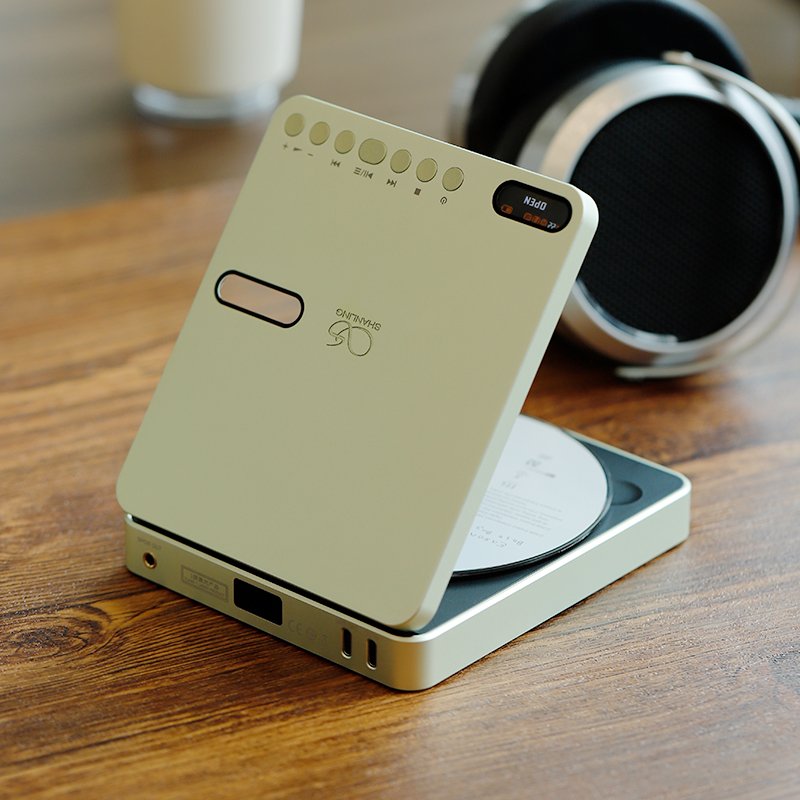

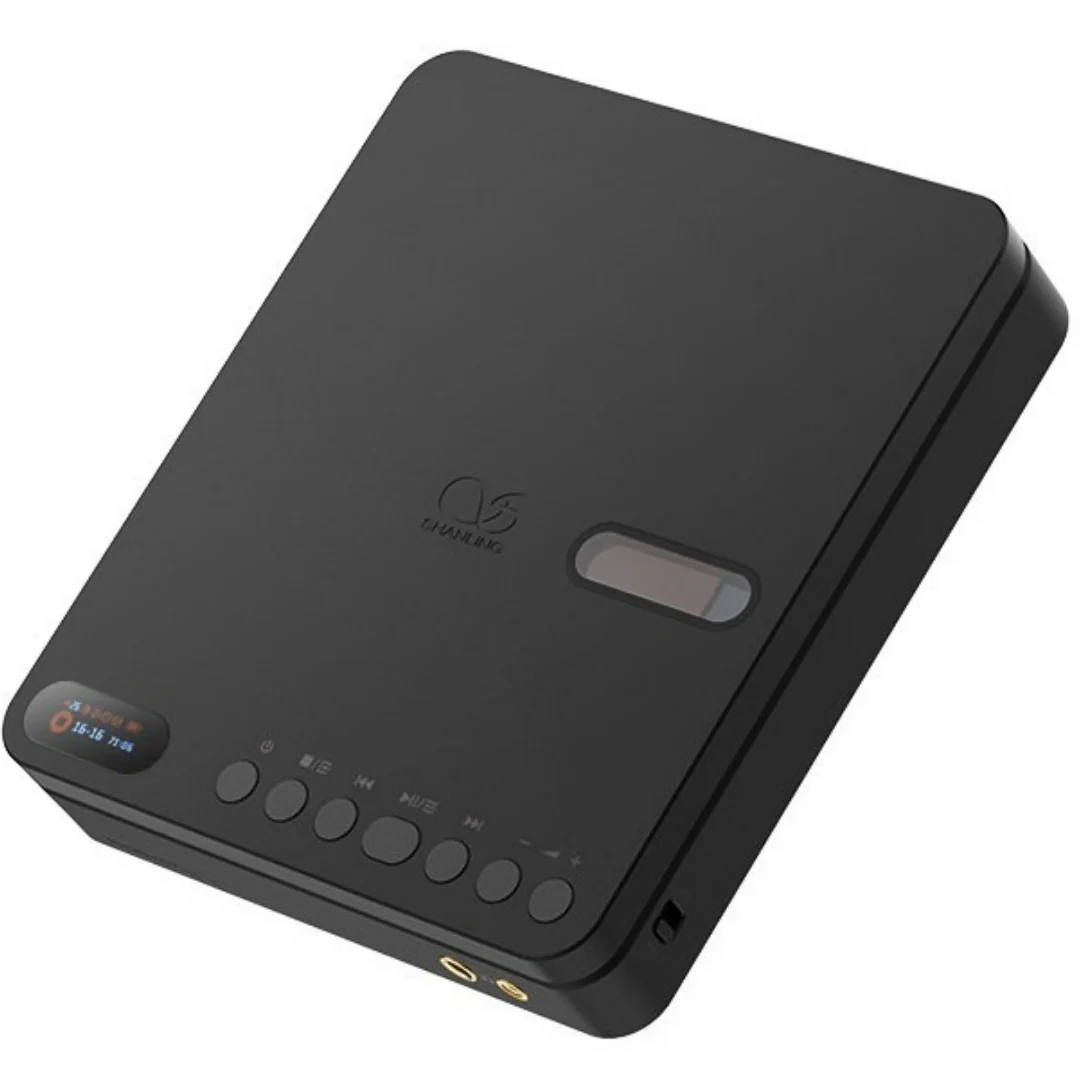

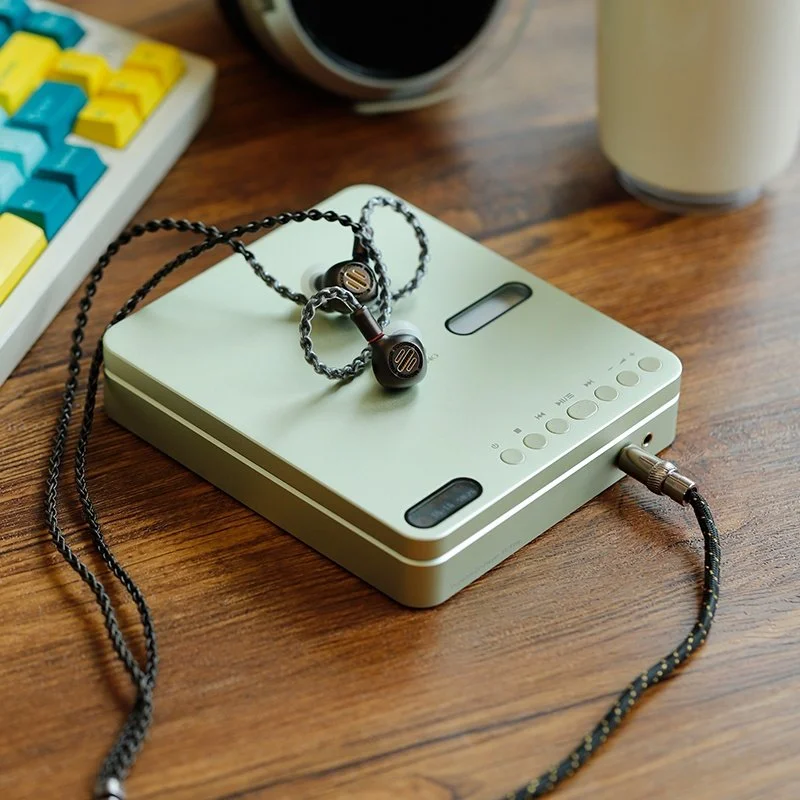

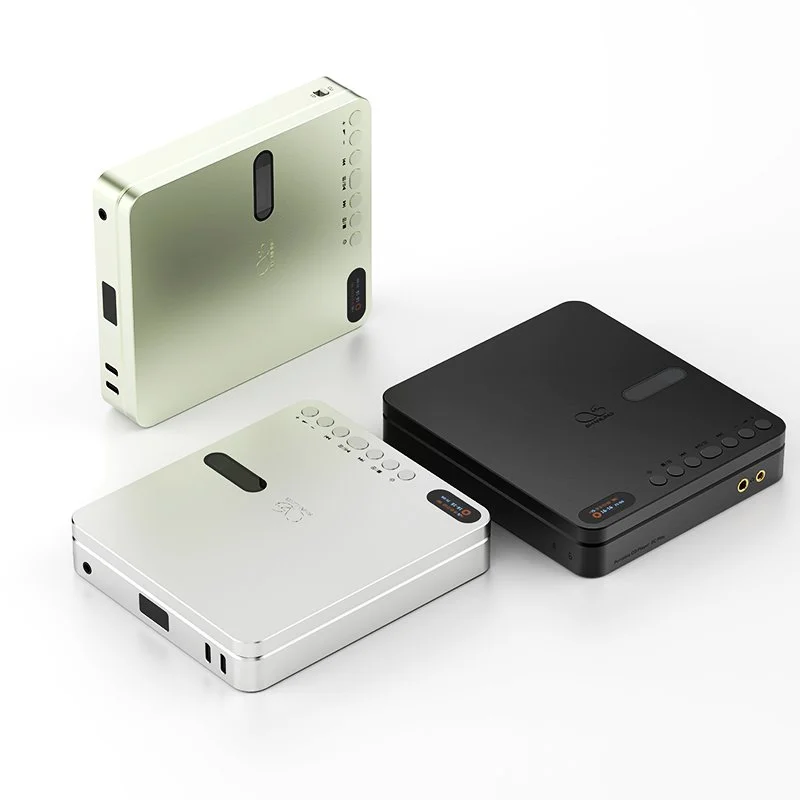

Shanling EC Play

Now In (06.19.26)

Specification:

• Dimensions: 142 x 125.1 x 26 mm

• Weight: Approx. 418 g

• Display: 1.12-inch screen

• DAC: Cirrus Logic CS43198

• Amplifier: 2 x SGM8262-2

• Supported discs: CD/CD-RW/CD-R

• USB DAC Support: 384kHz/32-bit, DSD256

• Battery: 3450 mAh

• Battery life: Up to 12 hours

Frequency Response:

• CD Playback: 20 Hz–20,000 Hz

• USB DAC: 20 Hz–40,000 Hz

Bluetooth Version: 6.0

• Bluetooth Receiver: LDAC/AAC/SBC

• Bluetooth Transmitter: SBC

3.5mm Single-Ended

Output Power:

• Low Gain: 44 mW @ 32Ω (1.19 Vrms)

• High Gain: 177 mW @ 32Ω (2.38 Vrms)

• THD+N: 0.0006% (A-weighted, 2V)

• Channel Separation: 73 dB @ 32Ω

• Dynamic Range: 120 dB

• Signal-to-Noise Ratio: 121 dB

• Noise Floor > 113 dB

• Output Impedance: 0.5Ω

4.4mm Balanced

Output Power:

• Low Gain: 177 mW @ 32Ω (2.38 Vrms)

• High Gain: 700 mW @ 32Ω (4.75 Vrms)

• THD+N: 0.0005% (A-weighted, 2V)

• Dynamic Range: 106 dB @ 32Ω

• Dynamic Range: 125 dB

• Signal-to-Noise Ratio: 125 dB

• Noise Floor > 111 dB

• Output Impedance: 0.8Ω
